ShowCase Pro
The first Media Server with M4 Mac mini at the core
Play 10+ 4K ProRes 422 videos simultaneously*
Play 24+ 1080p ProRes 422 videos simultaneously*
Built for QLab, Millumin, ProPresenter, MadMapper, Resolume, Mbox, and more
Play 64+ channels
of 48kHz audio output*
Output and receive video via NDI, SDI, or HDMI
Connect to two separate networks with 1G and
10G Ethernet
*Many factors including live effects and software efficiency can reduce the number of files that can be played back.
Benchmarked with QLab 5.
Slice a single 4K output from your Mac into four separate HDMI signals. Use SLICE4 to connect four projectors to a single port on any Mac, then use software like QLab or MadMapper to map them separately.
Unlike other display slicers which compromise on image quality or maximum resolution, the SLICE4 uses advanced FPGA technology to prevent quality loss. All outputs are by default WUXGA 1920×1200 resolution, the same as most theatrical projectors. Outputs can be configured to 1920×1080 using the excellent Mac app BetterDisplay Pro.
SLICE4 is designed to be plug-and-play, with no complex configuration software or confusing menus to navigate. Just connect it to your Mac with the included USB-C to DisplayPort cable and tell your video mapping software to use it as a 2x2 slicer.
Includes
Slice4 HDMI
3ft USB-C to DisplayPort adapter cable
Locking 12V power adapter
Slice4 orders may take up to 14 days to fulfill as we ramp up production
Slice a single 4K output from your Mac into four separate HDBaseT signals. Use SLICE4 to connect four projectors to a single port on any Mac, then use software like QLab or MadMapper to map them separately.
HDBaseT is transmitted over basic Cat5e/Cat6 cables and can be transmitted much greater distances than HDMI. Most professional projectors have HDBaseT input. Slice4 can transmit HDBaseT up to 230 feet.
Unlike other display slicers which compromise on image quality or maximum resolution, the SLICE4 uses advanced FPGA technology to prevent quality loss. All outputs are by default WUXGA 1920×1200 resolution, the same as most theatrical projectors. Outputs can be configured to 1920×1080 using the excellent Mac app BetterDisplay Pro.
SLICE4 is designed to be plug-and-play, with no complex configuration software or confusing menus to navigate. Just connect it to your Mac with the included USB-C to DisplayPort cable and tell your video mapping software to use it as a 2x2 slicer.
Includes
Slice4 HDMI
3ft USB-C to DisplayPort adapter cable
Locking 12V power adapter
Professional Video Connections
With up to (2) combo SDI+HDMI outputs on Blackmagic Design UltraStudio cards, there’s no chance of accidentally showing the macOS desktop to an audience. Only professional media playback applications that support the Blackmagic DeckLink protocol can access these outputs.
UltraStudio cards support SDI and HDMI mirrored output at the same time, so you can connect a local reference monitor in addition to a remote projector or display.
UltraStudio cards support broadcast resolutions up to 2K (2048x1080).
DeckLink is supported by QLab, Millumin, MadMapper, ProPresenter, and more.
Confirm compatibility with your preferred playback software.
$3799
Preconfigured and tuned for out-of-the-box use
$999
Install your own M4 Mac mini in a ShowCase Pro chassis
ShowCase Pro
Put the incredible video processing power of Apple Silicon to work on your show, event, or installation with our ShowCase Pro media server.
Play 10+ synchronized 4K ProRes 422 videos simultaneously*
Play 24+ synchronized 1080p ProRes 422 videos simultaneously*
Play video via NDI
Play 64+ channels of 48kHz audio output
Control hundreds of lighting instruments
*Many factors including live video effects and software efficiency can reduce the number of files that can be played back
ShowCase media servers are made-to-order by our Baltimore team and may take up to 10 business days to ship.

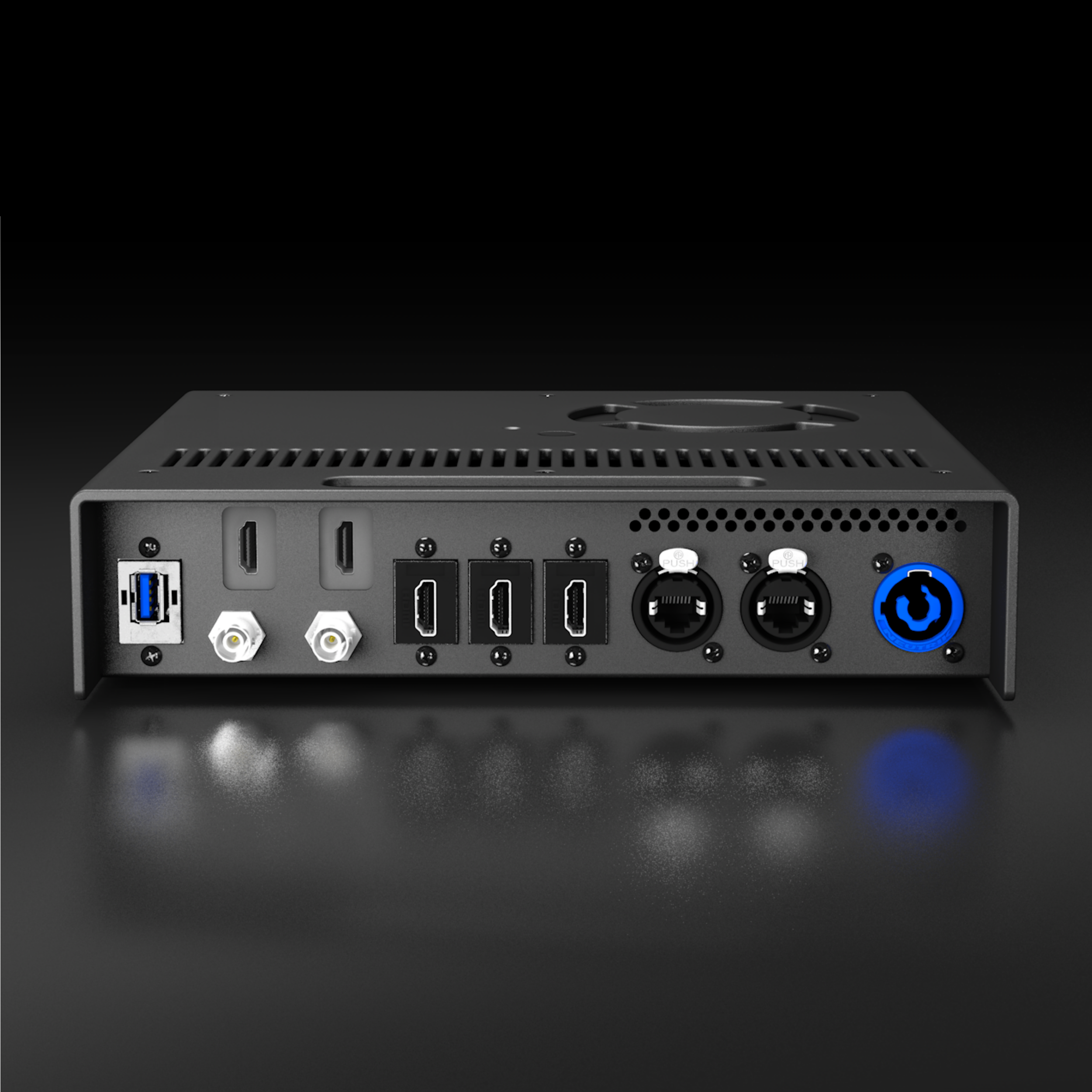

Connections

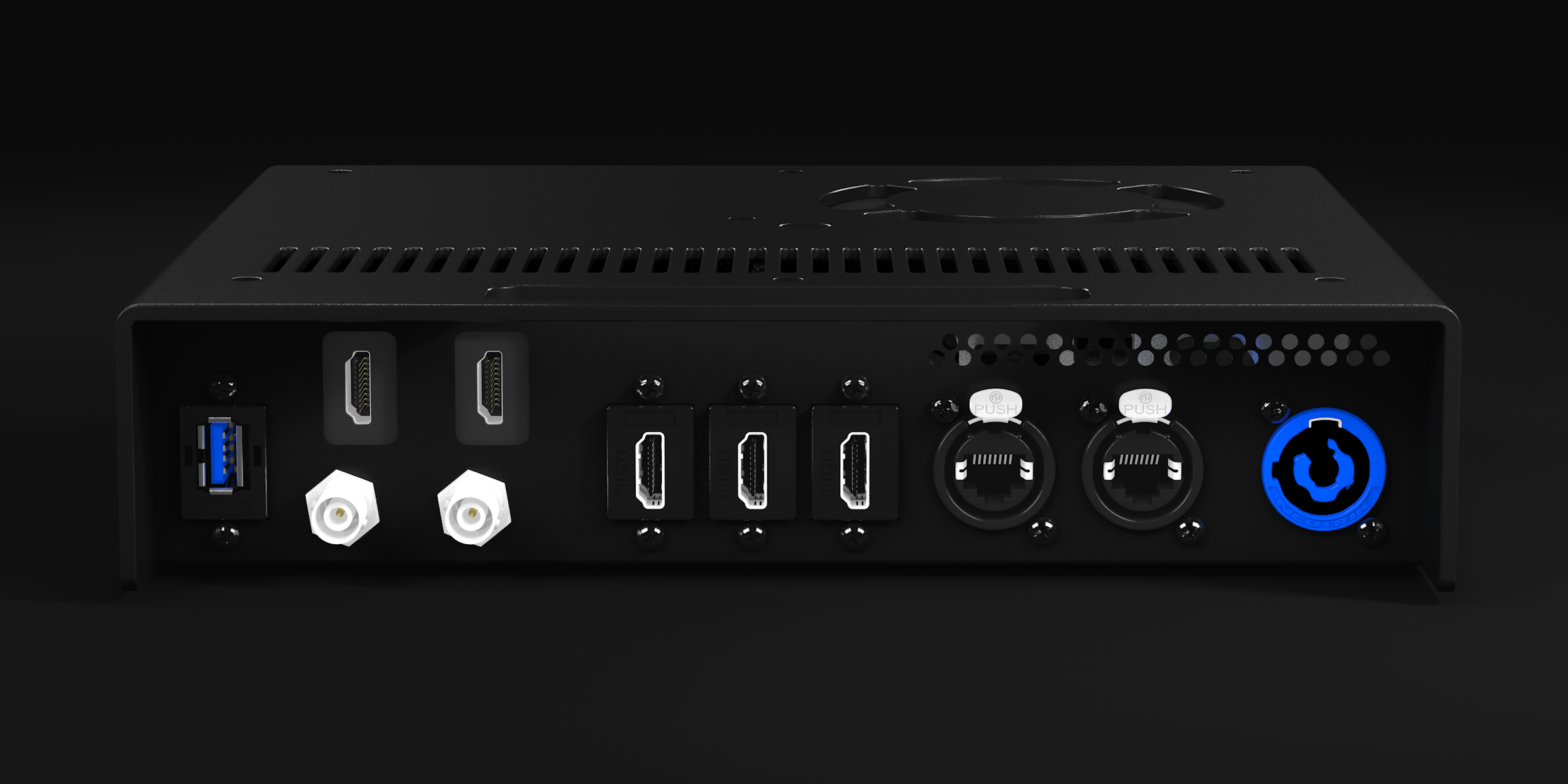

Back
(2) 4K 60Hz HDMI video outputs
(2) 2K BlackMagic HDMI+SDI UltraStudio outputs or inputs (configurable at time of purchase)
(1) 4K 60HZ HDMI operator monitor output
(1) 10 Gigabit Neutrik etherCON network connection
(1) Gigabit Neutrik etherCon network connection
(1) USB-A 3.0 5Gb/s port
Neutrik powerCON power input

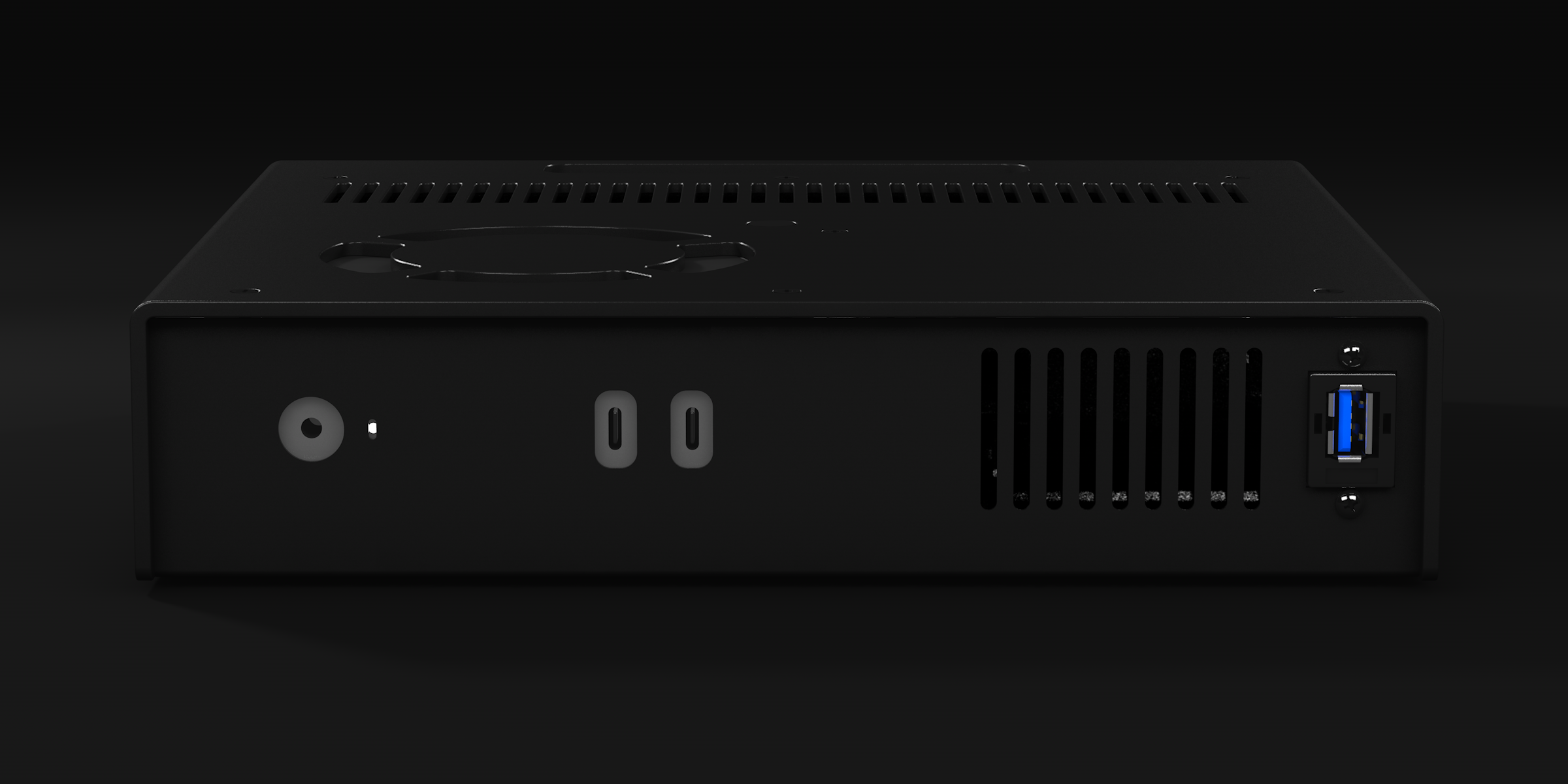

Front
(2) USB-C 3.1 10Gb/s ports
(1) USB-A 2.0 port
(1) 3.5mm headphone jack

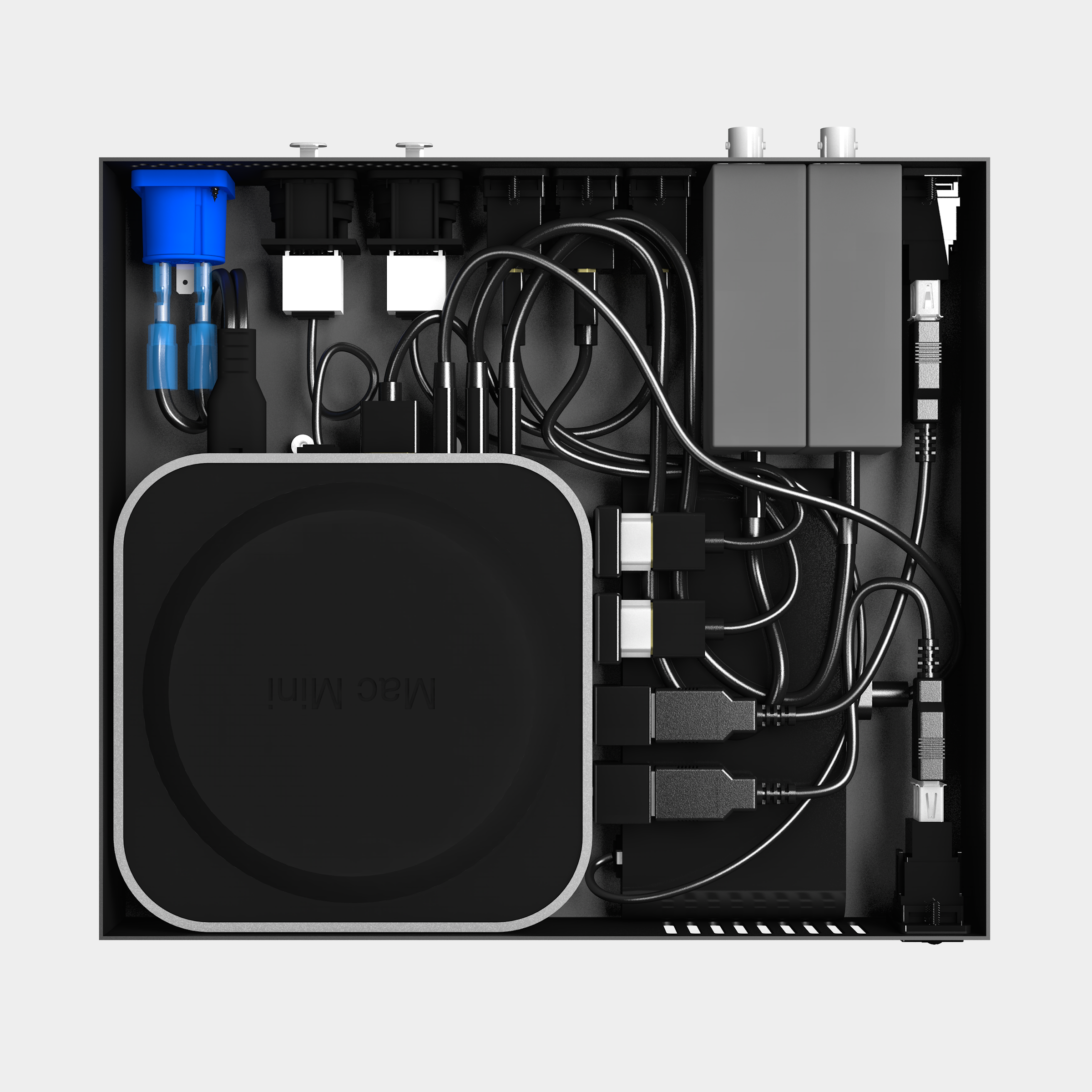

Mac mini specifications
Apple M4 Pro chip with 14‑core CPU, 20‑core GPU, 16-core Neural Engine
48GB unified memory
2TB SSD storage
10 Gigabit Ethernet
General specifications
Width: 9 1/2”
Depth: 9 3/8”
Height: 2 1/8”
Weight: 3lbs 8oz
Material: Black Powder Coated 5052 Aluminum
Why choose a ShowCase?
Reliability.
Every ShowCase includes interface cards and cables that are recommended by professionals and extensively tested by our team. There’s no chance of them coming unplugged mid-show, since ShowCase protects everything inside a sturdy aluminum enclosure.
Security.
Many environments, such as schools and public venues, have strict IT policies that make it hard to acquire a Mac. Or they load all computers down with show-breaking antivirus applications.
ShowCase isn’t a Mac, it’s a production appliance that will be left alone.
Tour-ability.
ShowCase Pro isn’t much bigger than the classic Mac mini dimensions. It fits in a backpack and is plug-and-play for rapid setup. No external adapters required.
